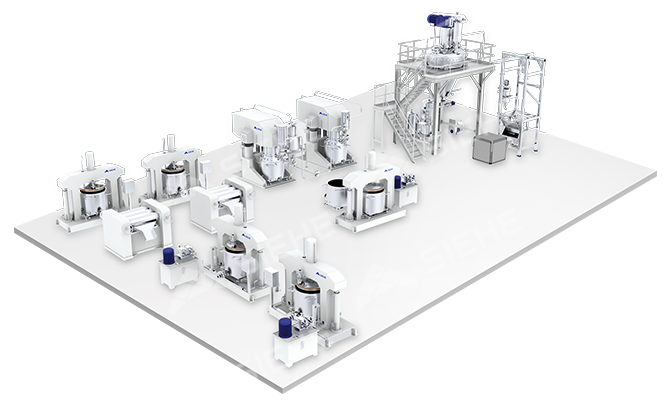

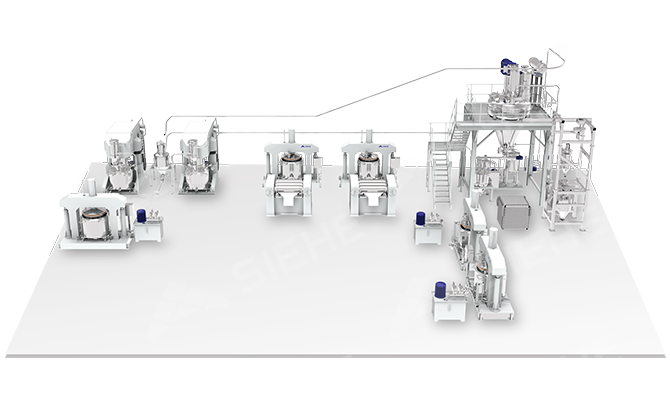

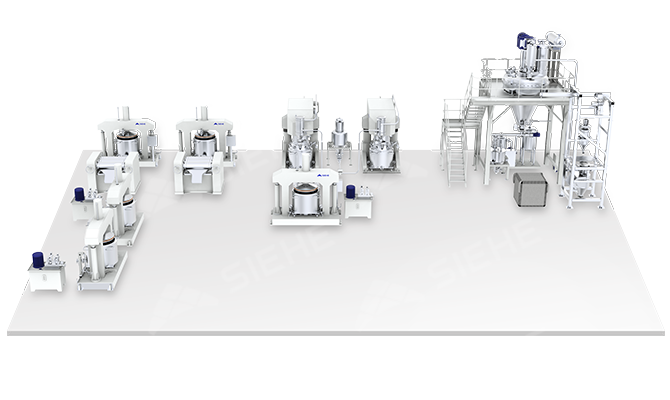

Silicone Complete Production Line
This Silicone Complete Production Line integrates the current advanced planetary mixing technology and efficient and energy-saving drying process, which is composed of powder unloading system, feeding system, drying system, batching conveying system, mixing system, discharging system, etc. The intelligent control system is used to realize the automatic production process from powder feeding, drying, batching, mixing to finished product output. Effectively improve the drying and mixing effect, greatly improve the production efficiency and product quality.
نظرة عامة على المنتج
| Processing materials | Feed moisture content | Discharge moisture content | Material viscosity | Capacity |
| aluminum hydroxide, silica gel | 5000-6000 ppm | <1000 ppm | ≤500,000cps | 2 tons/day |
مزايا المنتج
-
Automatic feeding, precise ingredients
Aluminum hydroxide powder is discharged through the Discharging and Feeding station for both small bags and ton bags. The hose at the bottom of the cone-bottom structure of the feeding station is connected to the receiving hopper of the vacuum feeder to continuously transport the powder to the dryer. The dried powder is transported by a screw conveyor to the metering tank for incremental batching. Closed transmission, maintain a clean working environment; The process is reasonable and the ingredients are accurate.
-
Vacuum drying, high efficiency

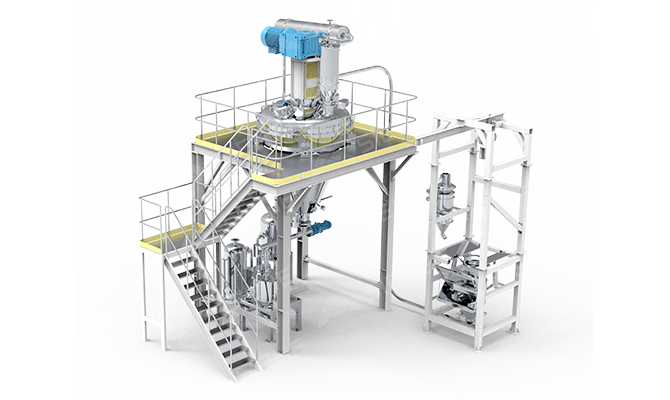

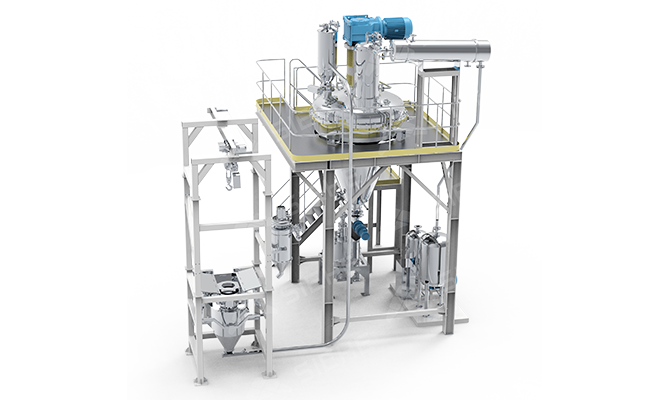

The drying unit is equipped with a vertical ribbon vacuum dryer. Its conical structure and ribbon-type agitator allow the material to be heated and turned evenly during the drying process, avoiding the occurrence of material agglomeration and adhesion. Vacuuming is performed while heating and drying, which can effectively reduce the evaporation pressure of water on the surface of the material, thereby improving drying efficiency.
-
Powerful mixing function and wide application range
The mixing system is equipped with two double planetary dispersing mixers. Screw frame agitator precision casting, processed by CNC to minimize the gaps between the blades and the blades and the barrel wall and bottom. It has better kneading force, uniformity and mixing efficiency. It can be evacuated according to process requirements, and equipped with a jacket to control heating/cooling of the material. Combined with a top-mounted temperature measurement probe, it ensures that the temperature is accurate and stable, thereby achieving the ideal glue-making effect.
-
Strong professionalism and rich experience in complete lines
SIEHE Group has rich experience in adhesive production, providing customers with a variety of adhesive complete sets of equipment. The discharging system
is equipped with 4 sets of extrusion machine, 2 sets are used for discharging components A and B; 2 sets are used for base gum production. The discharge port faces the feed roller of the tri-roller machine for redispersion to solve the problem of material trace agglomeration.
فيديو ذو صلة
المعايير الفنية
| System name | Technical specification |
| Powder Unloading and Feeding System | discharging and unpacking feeding station for both small and ton bag, vacuum feeder |
| Vacuum Drying System | the vertical ribbon vacuum dryer, vacuum condensation system |
| Batching Conveying System | screw conveyor, the metering tank, vacuum feeder, intermediate metering tank |
| Mixing System | two sets of double planetary dispersing mixers are used for mixing components A and B |
| Discharging System | 4 sets of extrusion machine. 2 sets are used for discharging components A and B; 2 sets are used for base gum production |
| Control System | the whole production line adopts SIEMENS PLC + touch screen |
